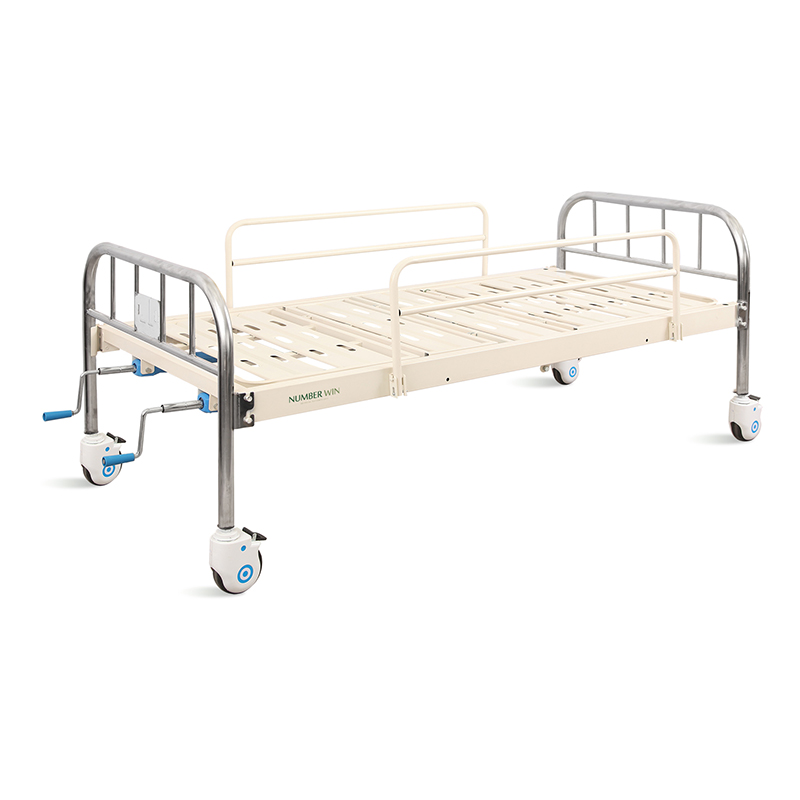

NW203s Manual Hospital Bed
Steels | Painting
Baosteel from Fortune Global 500.11 Process epoxy painting,ASTM testing anti-baterial, paint thickness 0.12 mm, brightness 60°,paint can resist 50kg impact.
Platform
Bar-type platform, smooth surface no welding scar, bearing 200KGS load.
Head & Foot Board
Stainless steel head&foot board, removable.
Siderail
Inergrated folding guardrial.
Crank
Chrome coated material, high strength.The end of the handle is covered with ABS, which is wear-resistant, long lasting
Castors
5" covered casters.
TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts.
Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 time.
Technical parameters
| External size (LxWxH) | 2000x1000x800 mm |
| Mattress platform | 1900×900 mm |
| Back-rest adjustment | 0-75° (±10°) |
| Knee-rest adjustment | 0-35° (±10°) |
| Safe working load | 200 kgs |
Technical configuration
| 5″ covered castors | 4pcs |
| Inergrated folding guardrial | 1set |
| Manual crank | 2pcs |
