NWB041-3 (NWM040) Patient Transportation Trolley
Metal material
Baosteel from Fortune Global 500 Panasonic Robotic ensure 360° full smooth wedlding

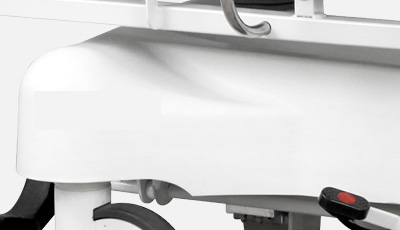

Plastic
Environmental plastic can be sterilized in 100°C，tensile upto 30MPa.
Steels | Painting
11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact.
Brake
Break spring keep qualified after 10,000times uninteruped break.
Hydraulic pumps
Height adjustment, trendelenburg and revised tendelenburg through two US A hydraulic pumps.
Center wheel
Can be engaged to facilitate direction control, enabling users to navigate the stretcher easily in hectic and dynamic environments.
Rising
Hydraulic treadle for rise.
Falling
① Leg section lows down to make head highter.
② Back section lows down to make leg section highter.
③ Step on the middle of the pedal, make the bed base fall down steadily.
Castors
Four double side casters of 6 inch diameter, simultaneously lockable by the step pedal at both sides. TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts.
Mattress
Waterproof PU mattress, convenient for transfer patient.
Side rail
Foldable aluminium alloy guardrail
Bumper wheel
Bumper wheel detachable, max. protect the bed and patient during transportation
Drainage Hooks
Mobile plastic drainage hooks.
IV pole
Stainless Steel Column with plastic hook.
Technical parameters
X-ray Backrest
| External size (LxW) | 2120×840 mm |
| Height from floor to bed platform | 550-860 mm |
| Height from floor to lowered guardrail | 590-900 mm |
X-ray Platform
| External size (LxW) | 2120×840 mm |
| Height from floor to bed platform | 600-910 mm |
| Height from floor to lowered guardrail | 640-950 mm |
| Back plate adjustment | 0-85° (±5°) |
| Knee-rest adjustment | 0-30° (±5°) |
| Reverse Trendelenburg | 0-15° |
| Trendelenburg | 0-15° |
Technical configuration
| USA pydraulic pump | 2pcs |
| Crank system | 1set |
| Back rest air spring | 2pcs |
| 8″ german castors, central Locking | 4pcs |
| Emergency push handle | 1set |
| Directional wheel | 1pc |
| Folding side rail | 1set |
| Φ74mm wall bumper wheel | 4pcs |
| IV pole previsions | 4pcs |
| Mattress | 1pc |
| IV pole | 1set |
| Central locking break pedal | 2sets |
| Directional wheel release pedal | 2pcs |
| X-ray translucent bed platform | 1set |
