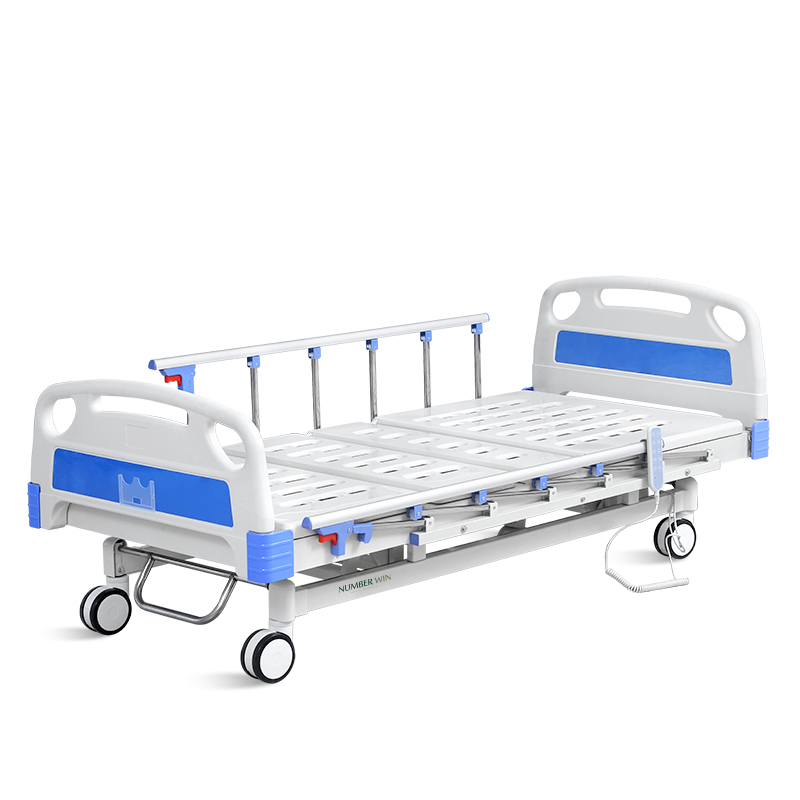

NWD801 Electric Hospital Bed
Design
The simple and elegant head and foot board design of the bed meets the hospital's infection control requirements and supports daily disinfection operations.
Plastic
Environmentally friendly plastic, non-toxic and odorless
Painting
The overall bed body adopts a series of processes of pickling, phosphating, water washing and oxidation, and a fully automatic water spraying line uses powder electrostatic spraying process to achieve bright color and firm adhesion.
Weldingl
Aluminum alloy side rail, 6-staff, collapsed type with safe lock.
Electric Control System
Famous brand motor has passed UL medical certification, stable performance, and motor noise of 50dB.
Hand Controller
The hand controller has a flexible spring wire,which makes it convenient and flexible to operate the hospital bed in the best position. Nurses can easily control all standard functions, including one-button CPR and background light function.
Platform

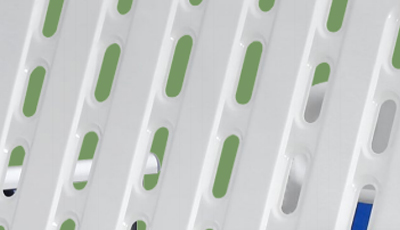

The bed width is 900mm, using a four-piece bed board, made of high-quality cold-rolled steel plate stamped at one time, with a thickness of 1.0mm, and a multi-hole design for easy ventilation and anti-slip function.There are no solder joints on the surface, and there are steel pipe reinforcements on the back.It adopts a double-support unloading structure to extend the life of the hospital bed and has a load-bearing capacity of 200KG.
Siderail
Equipped with sixth aluminium alloy guardrail, the design concept is a combination of aluminum alloy horizontal bars and stainless steel vertical bars, which is corrosion-resistant, has both aesthetic appeal and increased strength.
Head & Foot Board
Simple and elegant bed head and foot shape,easy to disassemble and install, with medical record card at the foot of the bed
Castor
The four wheels use 125mm luxurious silent center control wheels, a highly stable stainless steel linkage system, and the braking is stable, flexible and convenient. The two-wheel design increases the landing area and stability.
Drainage Hook
There are drainage hooks on both sides of the bed.
Technical parameters
| External size (LxW) |
2150×980(±10mm)
|
|
Height adjustment
|
430-640mm(±10mm)
|
|
Mattress platform
|
1950x900mm
|
| Back-rest adjustment |
0-75° (±10°)
|
| Knee-rest adjustment |
0-45° (±10°)
|
|
Reverse trendelenburg
|
0-10° (±2°) |
| Trendelenburg |
0-10° (±2°)
|
| Safe working load | 200 kg |
| Voltage | 100-230 V |
| Frequency | 50/60 Hz |
Technical configuration
|
Linear motor
|
4pcs |
|
5″ double side castors, central locking
|
4pcs
|
| Foldable side rail | 1set |
| ABS bed ends with safe lock | 1set |
|
Hand controller
|
1pc
|
| lV Pole Prevision | 4pcs |
|
Drainage hook
|
2pcs |
